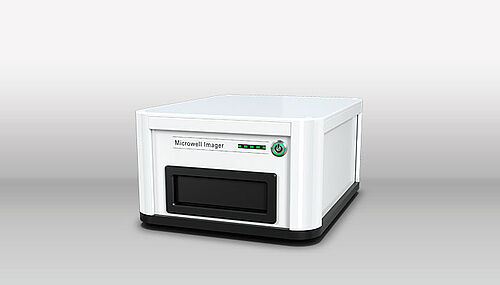

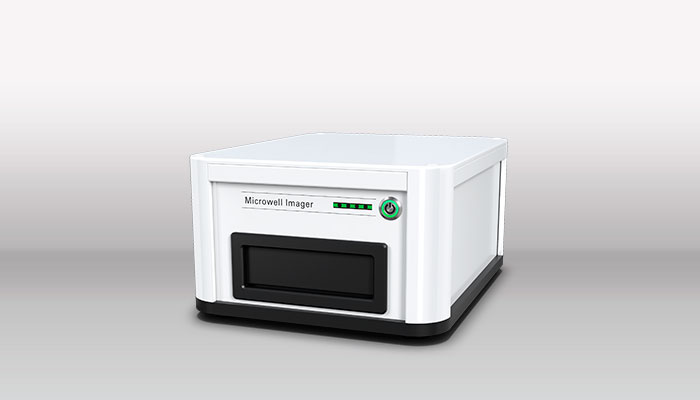

Microwell Imager

Acquisizione e valutazione delle immagini EUROMicroblot

Dispositivo compatto da banco per l’acquisizione automatica delle immagini nelle analisi di immunoblot miniaturizzati in micropiastra EUROMicroblots. La rapidità di acquisizione e la preparazione smart delle immagini consente di integrare facilmente il sistema nel processo di automazione degli EUROMicroblot. Il lettore di codici a barre integrato garantisce l'affidabilità dell'assegnazione delle piastre EUROMicroblot.

L'integrazione con EUROLineScan, il consolidato software per la valutazione automatizzata dei blot di Euroimmun, semplifica l'uso di Microwell Imager e la valutazione delle bande registrate. Il software visualizza, registra e archivia tutti i dati e i risultati, e infine li esporta al LIS mediante il middleware EUROLabOffice 4.0.

Il video mostra come la tecnologia EUROMicroblot è stata integrata con successo nel flusso di lavoro dell'ambulatorio reumatologico "An der Hase".

  • Valutazione rapida e affidabile degli EUROMicroblot grazie alla gestione smart delle immagini
  • Dispositivo compatto comodamente integrabile in qualsiasi laboratorio
  • Uso intuitivo grazie al consolidato software EUROLineScan di Euroimmun
  • Chiara identificazione delle piastre EUROMicroblot con il lettore di codici a barre integrato

Workflow optimisation

  • 45 sample and reagent tracks for freely flexible loading
  • Slides with 10 and 50 reaction fields
  • Spatial separation of liquid handling and incubation (enables parallel workflows)
  • Fully automated washing and mounting of slides

Precise and efficient pipetting

  • 10 coated stainless steel needles and precision pumps for high pipetting accuracy
  • Optimised pipetting efficiency due to economical routes
  • Secure pipetting procedure owing to liquid level detection
  • Multishot function for the dispensing of reagents and samples

Innovative washing technology

  • Fully automated washing of IFA slides using directed and controlled liquid flow: MERGITE! washing technology
  • Two integrated washing units for slides with 10 and 50 reaction fields
  • Integrated washing unit for cleaning of reagent trays
  • Automatic dispensing of mounting medium

Convenient operation

  • Touch-screen PC with intuitive graphic user interface
  • Clear display of the time schedule for the current run
  • Software-supported maintenance with minimum time required

Overview of the process status

  • Convenient system overview with detailed status information on run times, resources and slides
  • ID-based memory function for dilution plates
  • Exact time information on pending actions to improved plannability

Process security from A-Z

  • Software access with different user accounts and rights
  • Transparent traceability of all data entries and changes
  • Gapless allocation of test results to the samples and reagents used

Sample capacityup to 96 samples per plate
Loadmicroplates in 96-well format
Speedapprox. 96 seconds per microplate (1 s / image)*
Camera sensor5 megapixel, monochrome 8 – 16 bit
Imaging resolution< 15 μm per pixel
Illuminationwhite-light LED
Barcode scannerautomatic identification of barcode types Code 128
Operation and data analysisvia EUROLineScan software from version 3.4.33
Compatible operating systemMicrosoft Windows 10, 64 bit
Connectionfrom USB 3.2 Gen 1; Type A
Power supply100 – 240 V AC, 47 – 63 Hz, 0.6 – 1.5 A
Dimensions / Weight310 mm x 400 mm x 191 mm (W x D x H) / 13,6 kg

*Time until final evaluation in EUROLineScan may be longer due to variable exposure series
