IF Sprinter

Automazione rapida e affidabile per l'immunofluorescenza indiretta per laboratori di piccole e medie dimensioni

Con IF Sprinter, Euroimmun ha progettato una soluzione per la completa automazione dei test in immunofluorescenza nei laboratori piccoli e medi: il dispositivo esegue in autonomia le diverse fasi, dall’identificazione, diluizione e dispensazione dei campioni, fino all’incubazione e lavaggio dei vetrini.

  • Sistema flessibile per la piena automazione dei test in immunofluorescenza
  • Affidabilità e tracciabilità garantite dal lettore di codici a barre integrato per l'identificazione automatica del campione e l'identificazione automatica dei vetrini tramite i codici matrix (opzionale)
  • Pipettamento efficace senza contaminazioni mediante puntale lavabile
  • Operazioni semplificate per la gestione giornaliera dei laboratori, grazie al sistema intuitivo di comunicazione con il LIS o EUROLabOffice
  • Capacità fino a 96 campioni e 15 vetrini per ciascuna seduta

Workflow optimisation

  • 45 sample and reagent tracks for freely flexible loading
  • Slides with 10 and 50 reaction fields
  • Spatial separation of liquid handling and incubation (enables parallel workflows)
  • Fully automated washing and mounting of slides

Precise and efficient pipetting

  • 10 coated stainless steel needles and precision pumps for high pipetting accuracy
  • Optimised pipetting efficiency due to economical routes
  • Secure pipetting procedure owing to liquid level detection
  • Multishot function for the dispensing of reagents and samples

Innovative washing technology

  • Fully automated washing of IFA slides using directed and controlled liquid flow: MERGITE! washing technology
  • Two integrated washing units for slides with 10 and 50 reaction fields
  • Integrated washing unit for cleaning of reagent trays
  • Automatic dispensing of mounting medium

Convenient operation

  • Touch-screen PC with intuitive graphic user interface
  • Clear display of the time schedule for the current run
  • Software-supported maintenance with minimum time required

Overview of the process status

  • Convenient system overview with detailed status information on run times, resources and slides
  • ID-based memory function for dilution plates
  • Exact time information on pending actions to improved plannability

Process security from A-Z

  • Software access with different user accounts and rights
  • Transparent traceability of all data entries and changes
  • Gapless allocation of test results to the samples and reagents used

Tipi di campionesiero, plasma e liquido cefalorachidiano
Numero max. di campioni gestitifino a 96 campioni
Capacità del vetrinofino a 15 vetrini (possono essere combinati vetrini con 10 e 50 pozzetti)
ProvetteDiametro esterno 10 – 16 mm, altezza fino a 100 mm
Volume di pipettamento5 μl – 1000 μl, 1 μl incrementale
Tracciabilitàregistrazione automatica dei campioni, registrazione automatica dei vetrini (opzionale)
Ingombro (LxLxH)650 mm x 700 mm x 750 mm
Peso50 kg

UNIQO 160

EUROLabWorkstation IFA

Sprinter XL

IF Sprinter

EUROPattern Microscope

EUROPattern Microscope Live

EUROStar IV Plus

Screenshot EUROLabOffice 4.0

EUROLabOffice 4.0

Screenshot EUROPicture

EUROPicture

Screenshot EUROLabPolaris

EUROLabPolaris

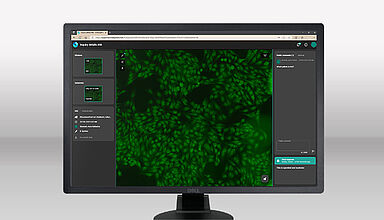

Screenshot EUROLabPolaris Support Platform
