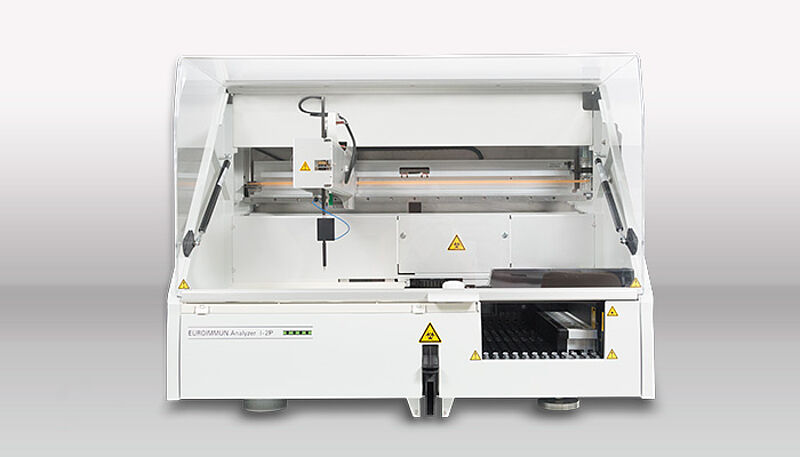

EUROIMMUN Analyzer I-2P

Automazione ELISA efficiente per una produttività medio-bassa

EUROIMMUN Analyzer I-2P è un sistema completamente automatico per l’esecuzione di test ELISA fino ad un massimo di 3 micropiastre e 144 campioni in un unico ciclo. La combinazione di ELISA Euroimmun e EUROIMMUN Analyzer I-2P consente la gestione semplice e rapida della routine di laboratorio, ma assicura anche l’estrema sicurezza e tracciabilità del percorso analitico, grazie al riconoscimento e all'assegnazione automatica dei reagenti e all'importazione dei dati QC tramite codici Data Matrix.

EUROIMMUN Analyzer I-2P è progettato per volumi di campione medio-bassi.

  • Elaborazione ELISA completamente automatizzata per volumi di campioni medio-bassi con minimi tempi di interazione
  • Elevata affidabilità e tracciabilità grazie all'identificazione automatica dei codici a barre dei campioni e dei reagenti pronti all'uso
  • Lavorazione rapida fino a 50 test all'ora
  • Capacità massima di 3 piastre e 144 campioni per sessione
  • Comodo utilizzo del software, compresa la scansione dei certificati QC mediante uno scanner di codici a barre 2D manuale

Information material

Workflow optimisation

  • 45 sample and reagent tracks for freely flexible loading
  • Slides with 10 and 50 reaction fields
  • Spatial separation of liquid handling and incubation (enables parallel workflows)
  • Fully automated washing and mounting of slides

Precise and efficient pipetting

  • 10 coated stainless steel needles and precision pumps for high pipetting accuracy
  • Optimised pipetting efficiency due to economical routes
  • Secure pipetting procedure owing to liquid level detection
  • Multishot function for the dispensing of reagents and samples

Innovative washing technology

  • Fully automated washing of IFA slides using directed and controlled liquid flow: MERGITE! washing technology
  • Two integrated washing units for slides with 10 and 50 reaction fields
  • Integrated washing unit for cleaning of reagent trays
  • Automatic dispensing of mounting medium

Convenient operation

  • Touch-screen PC with intuitive graphic user interface
  • Clear display of the time schedule for the current run
  • Software-supported maintenance with minimum time required

Overview of the process status

  • Convenient system overview with detailed status information on run times, resources and slides
  • ID-based memory function for dilution plates
  • Exact time information on pending actions to improved plannability

Process security from A-Z

  • Software access with different user accounts and rights
  • Transparent traceability of all data entries and changes
  • Gapless allocation of test results to the samples and reagents used

Tipo di campioniPlasma, siero, CSF e feci
Capacità campioniFino a 144 campioni
Numero piastre per sessioneFino a 3
Capacità di analisi per sessioneFino a 36
Incubatori agitabili2
ProcessivitàFino a 50 test all‘ora
Provette per campioniDiametro esterno 10 – 16 mm, altezza fino a 100 mm
TracciabilitàScanner di codici integrato per l'identificazione di campioni e reagenti
Interfaccia utenteMicrosoft Windows 10 Enterprise 2019 LTSC (64 bit)
Connessione onlineASTM interface, bi-directional
Dimensioni (WxDxH)1200 mm x 750 mm x 1150 mm
Peso100 kg
